New Features

BART’s new train cars feature many new improvements. The cars are:

  • Quieter:  micro-plug doors help seal out noise
  • Cooler:  cooling systems distribute air directly from the ceilings, making it more comfortable for standees on hot days
  • Comfortable:  padded seats have lumbar support – and are covered with wipeable fabric for ease of cleaning
  • Easy to use:  routes are color coded like the BART system map, and next stop information is readily available via automated announcements and digital screens.



Fleet of the Future car interior



Train Interior Layout

Based on customer feedback, the train interior layout is designed to maximize seating, openness, and comfort within the available space.

The new train design provides more handholds for shorter and mobility-impaired individuals. For taller customers, the design features a higher ceiling over the middle aisles, about four inches higher than the current BART train cars. The ceiling is accented with indirect light.

The new train car design includes two types of seating areas to meet the diverse needs of BART customers. The train cars have conventional seating at the ends that customers settling in for a longer trip may want to choose, while open seating areas near the doors may be preferred by riders traveling in groups. Riders with luggage, strollers or other personal items, as well as customers who want a little more legroom may also prefer the open seating areas.



Wheelchair Seating - Middle Door
The upper image is the cab car and the lower image is the non-cab car.

Based on feedback from disability advocates, the floor plan was modified in February 2015 to enable passengers with more than one wheelchair user in their group to sit in the same area when they ride BART. As a result, both wheelchair areas are now located at the center door of the train car, and all floor-to-ceiling poles will be removed in this area to maximize accessible paths. This modified plan was endorsed by the BART Accessibility Talk Force as well as other disability groups.

With the new floor plan, bicycle parking is located at an end door. The end doors also have tripod poles for semi-ambulatory people with disabilities, senior citizens, and others who need extra stability as the train accelerates and decelerates. Doors on the new train cars are marked to show which doors have designated wheelchair zones and which doors have bike parking.

Wheelchair and bicycle signage

Similar to the old BART fleet, the new train cars are a mix of cab cars, which have space for the train operator (see floor plan in upper image) and non-cab cars (see lower image). Cab cars, which will make up 40% of the new fleet, can always be found at the beginning and end of any train. On trains that are six cars or longer, cab cars are often found in the middle as well. By having some cab cars in the middle, trains can more easily be resized to meet demand.

The number of seats on the new cars is approximately the same as the old cars.  BART’s vintage cars have an average of 54.6 seats per car, and the new cars have an average of 54 seats per car, so there is less than a one seat reduction. Thinner seat backs helped maximize seat count and make up for space lost to new buffer zones for crash safety at the ends of the car, and an extra door in the middle.

To increase the number of seats in the fleet, BART has set a goal to obtain funding to increase the fleet to 1,200 train cars. This would increase the number of seats in the fleet by more than 70%.

Seat Increase Comparison Chart

Seats

During initial customer feedback sessions, riders indicated cleanliness is a top priority. So BART ed seat covers on the existing train cars with a non-porous, wipeable seat material that is easy to keep clean. This type of seat material has received a positive response among riders, so it will continue to be used in the new train cars.

Read more about the BART’s new vinyl seats.

Seats on BART's new train cars are almost 50% lighter than the current seats, which will save energy over the life of the vehicle. The new seats are fully modular, allowing for seat reconfiguration which will enable the vehicle to evolve with future rider needs. The seats use longer lasting silicone cushions that hold their shape longer and improve life cycle sustainability. Also, the seats provide one-inch more legroom than the seats on the old trains.

New Seats



Feedback from over 2,000 customers in 2011 helped BART determine optimal seat dimensions for the new train cars. BART surveyed a random sample of BART riders to learn what dimensions were acceptable:

seat width height



Based on feedback from the seat labs, the seats in the new train cars have these dimensions:

seat dimensions



Having the seats mounted higher off the floor makes it easier for customers to stand up from a seated position. Also it adds extra room underneath the seats to fit carry-on sized luggage. Read more about the seat lab results.

Later in the design process, over 2,500 customer tested out prototype seats in October and November 2013. The seats with a medium density seat bottom foam won out over high and low density options. Overall customer acceptance of the prototype seats was fairly high, and the seats got especially good ratings for lumbar support.



Prototype Seat Ratings - Medium Density Bottom Foam:

seat ratings



Bike Racks

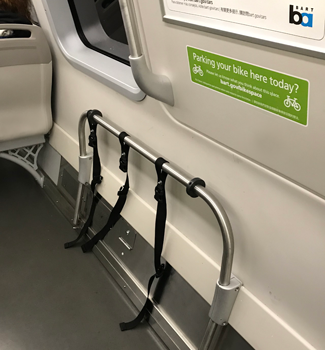

Because BART trains are constantly coupled and uncoupled between runs throughout the day it is not possible to keep a dedicated "bike car" in a predictable position on each train. So instead, the current design incorporates bike racks in every car. The rack is designed to stabilize bikes as the train moves.

Bike Rack

During the design process, customers raised concerns about the interaction of the bike rack with adjacent flip down seats. As a result, the flip down seats have been removed. Each bike rack has enough slots to hold up to 3 bikes.

In the first 10 pilot cars, BART is testing three different configurations:

Bicycle Test Configurations

These schematics show noncab cars, cab cars will be identical except there is a cab on one end and five fewer seats.

A. 6 cars have a bike rack on one end.

B. 2 cars have a multi-use space on one end for bikes, luggage, and strollers but no bike rack.

C. 2 cars have a bike rack on one end and  multi-use space on the other end.



Passenger Information Systems

The new train cars include 6 interior digital screens (located next to side doors) that display a dynamic system or route map, the next stop, courtesy reminders and safety information. BART is excited about using these screens to improve customers' BART experience! View a sample loop below that illustrates what these screens could eventually show. The system map on the left tells you where you are, while the right hand side of the screen shows the next stop and other information.



Please email BART with your feedback.



The new train car interior design includes LED screens on the ends of the cars that display next stop information. Additional digital screens on the exterior of the cars display route color, the train’s destination, and possibly other information in the future.

LED Destination Sign



In addition to the digital screens, many hearing-impaired riders may benefit from an induction loop system that transmits information directly to receptive hearing aids and cochlear implants.

Sight impaired passengers will benefit from automated audio announcements and a better quality PA system with interior and exterior speakers.

Read more about accessibility features.



Doors

In anticipation of dramatic ridership growth over the next 30 years, the new train cars have three doors on each side to make it faster and easier for passengers to get on and off trains. Two of the doors are located at the ends of the cars—in the same place as today. A third door is located in the middle of the car.

As the new train cars are delivered over the course of a decade, BART will be running a “mixed-fleet” of new and old cars. Note that the location of the first and third door on each car will align with existing black squares on the platform but the ­platform is not yet marked to show where to wait to board a middle door. BART plans to install the middle door markers once 50 of the new cars are in service.

micro plug doors



The doors on the new trains use an entirely different technology than that used by the current trains. Vintage BART trains have pocket doors that slide into the wall when they open. These doors contribute to a noisy ride on BART because they do not adequately block noise from outside the train and they can rattle as the train travels through tunnels.

The new doors utilize micro-plug door technology. This means they slide on a track outside the train, similar to a mini-van door. As they slide closed, they pull in ¾ of an inch to seal tightly around the door frame. This “plug” dampens the amount of noise that reaches the inside of the train, as well as providing better thermal insulation, making the cars more comfortable on very hot or cold days.
